ALS Series Limit Switch
1.Compact and Beautiful Design, Polyester powder coated aluminum diecasting housing or stainless steel (304/316) housing.
2.Higher level weather proof (IP67)
3.Certified for use in all hazardous areas(Class I, Div.1&2, Groups A,B,C and D,Ex d IIB T6, Ex d IIC T6).
4.Available for sensors of mechanical, Inductive and magnet.
5.Available for sensors communication card with ASi or Devicenet protocol.
6.Dual cable entries, 2xG1/2 (Standard) and M20x1.5, NPT1/2(Optional) Multipoint terminal strip, standard 8 points and enough strips for connection
7.(14 points for optional).Multiview visual Position Indicator, Secure waterproof, multiangles visual
8.valve positions involving top and side view.
9."Quick-Set" Cam, spring loaded splined cam. no need to adjust again after initial setting and easy setting without tool. Captive cover bolts, No worry to loose bolts while cover opens Easy mounting, NAMUR and ISO5211 adjustable bracket same as for 30*80-130 H20-30. standard is steel plate and stainless steel (optional)

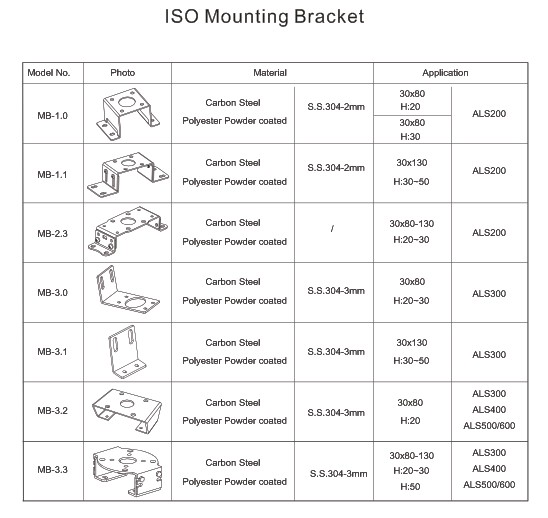

10.Easy mounting,NAMUR and ISO5211 adjustable bracket sames for 30*80-130 H20-30 standard is steel plate and stainless steel(optional)
